Architectural & Building Powder Coating Manufacturer

Advantage

We always pay close attention the quality of our powder coatings, in order to protect your benefits, we will control your order strictly to ensure that the quality of each batch of your order is very stable, so that you can be 100% assured. Our powder coating testing equipment is cutting-edge in the industry, and R&D investment is increasing.

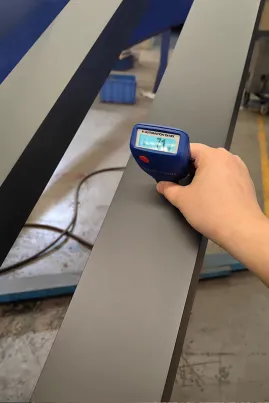

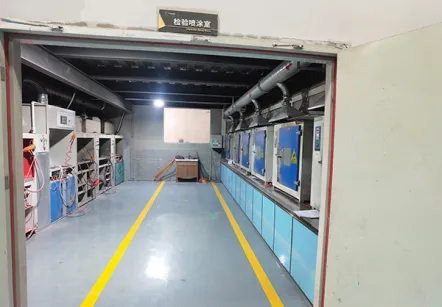

Inspection Spraying Room for Powder Coating

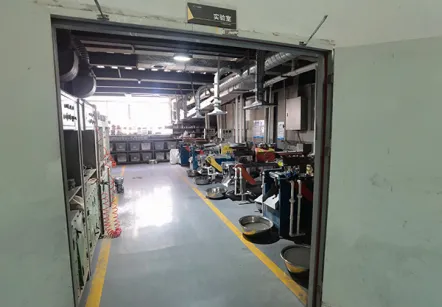

Laboratory for Powder Coating

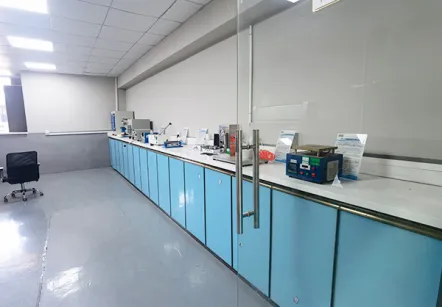

Test Room for Powder Coating

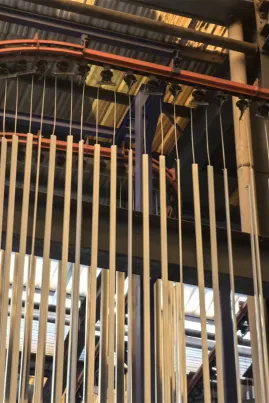

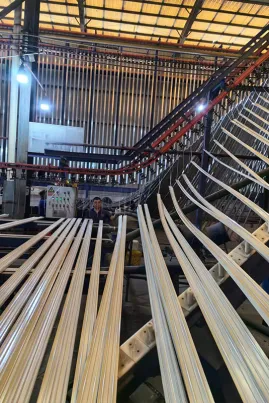

Application Scenarios

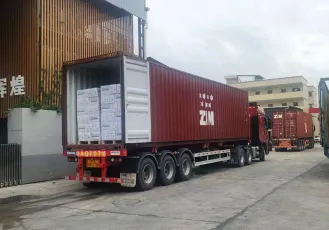

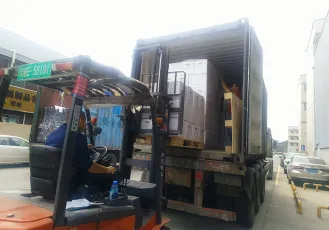

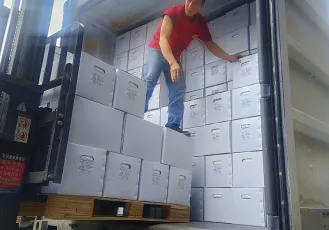

Container Stuffing

As a renowned powder coating manufacturer in China, We often ship many containers to Europe, America, the Middle East, Asia, Africa, and South America.

Product Features

Our powder coatings for standard building material have good adhesion, excellent mechanical properties, tough coating film, smooth and smooth film, good outdoor endurance, and excellent resistance to excessive baking.

They are suitable for various outdoor products such as: outdoor lighting, beach chair, solar water heater,

outdoor air conditioning unit, aluminum curtain wall, door and window frame, ceiling, highway guardrail, fence, sports facilities, communication equipment, etc.

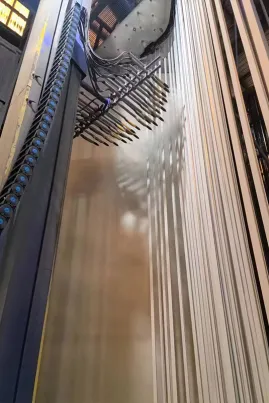

Spraying method: high voltage electrostatic spraying 60-80KV

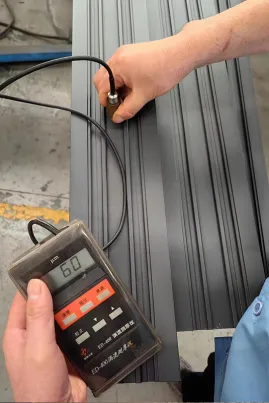

Recommended film thickness: 60-80 um

Application parameters: the curing time is 200°C x 10-15 minutes

Architectural Powder Coating Applications

1. Exterior and Interior Metal Frames:

Provides a durable and visually appealing finish for structural elements, enhancing both functionality and aesthetics.

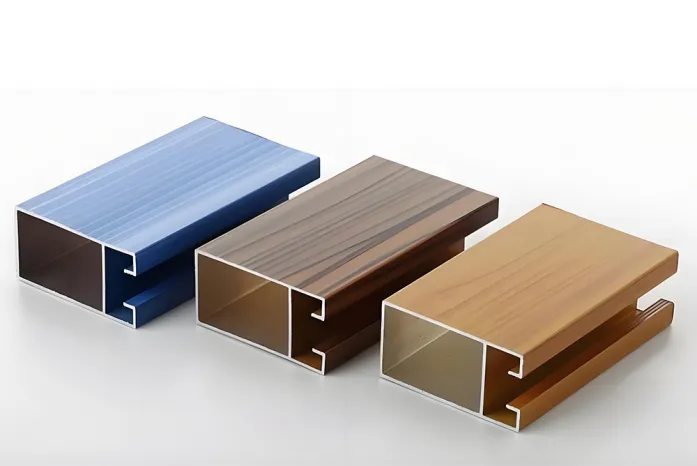

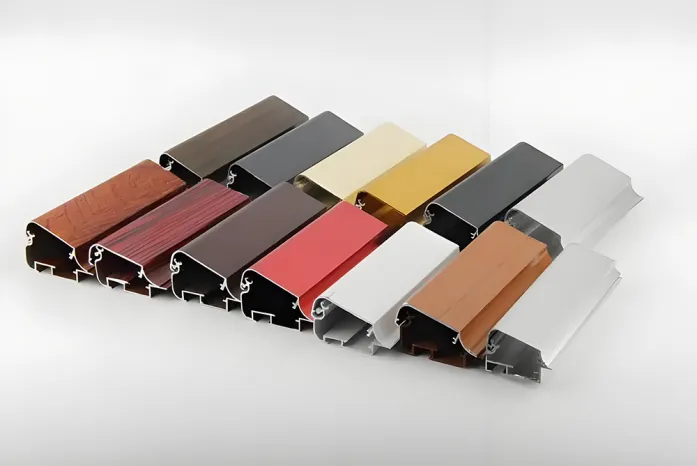

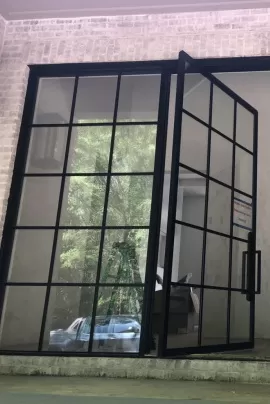

2. Window and Door Components:

Ideal for aluminum profiles, steel frames, and other components, offering protection against weather and corrosion while maintaining a sleek appearance.

3. Facade Elements:

Used for cladding panels, metal trim, and other exterior surfaces to achieve a uniform, high-quality finish that enhances the building’s overall design.

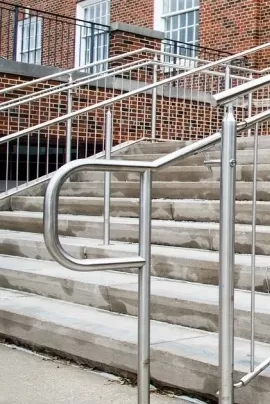

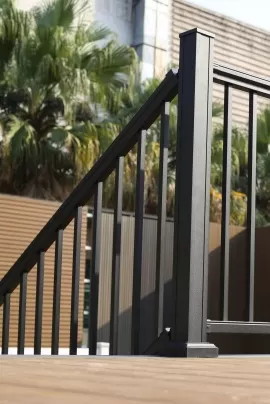

4. Handrails and Balustrades:

Offers a protective and decorative coating, ensuring durability and a sophisticated appearance for these frequently used elements.

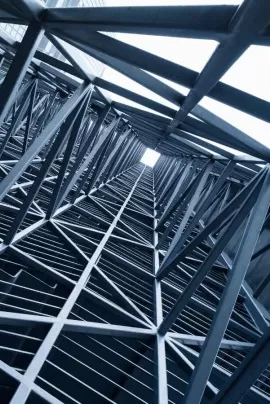

5. Structural Steel Components:

Protects against corrosion and environmental damage, extending the lifespan of structural elements such as beams and columns.

6. Architectural Accents:

Adds a high-quality finish to decorative elements like columns, brackets, and other metal features, enhancing the visual appeal of architectural designs.

Instrument Standard Test Methods

Physical Properties	Chemical Properties
Pencil hardness pencil hardness tester ≥ H GB/6739	Salt spray resistance ≥ 500Hs ≥ 9 GB/T 1771
Impact resistance impact meter ≥ 50kg.cm GB/T 1732	Heat and humidity resistance ≥ 1000 Hs light loss GB/T 1740
Bending resistance bending instrument ≤ 2mm GB/T 6742	Weathering resistance (outdoor products) Artificial accelerated aging QUV-B313 240 hours ≥ 3 grade GB/T 1865
Adhesion Bag test class 0 GB/T 9286
Cup process cup process meter ≥ 6mm GB/T 9753

In the above tests, 0.8mm cold rolled steel plates with oil and rust removal were used. The film thickness was 40 ~ 80um, and the, performance index of the film would change slightly with different gloss.

This product does not contain arsenic, selenium, lead, hexavalent chromium, mercury, antimony, cadmium and other heavy metals, and meets RoHS requirements .

Storage conditions: dry at about 35°C, stored in the ventilated room, avoid direct sunlight. Under these conditions, the powder can be stored for 12 months, product can still be used after re- examined to be in good condition even if it is found to be expired.

Note: All the test indicators mentioned in this report are the data obtained from laboratory tests for reference only and do not represent the performance commitment of the product application.

The results vary with environmental factors and other conditions.

Overview

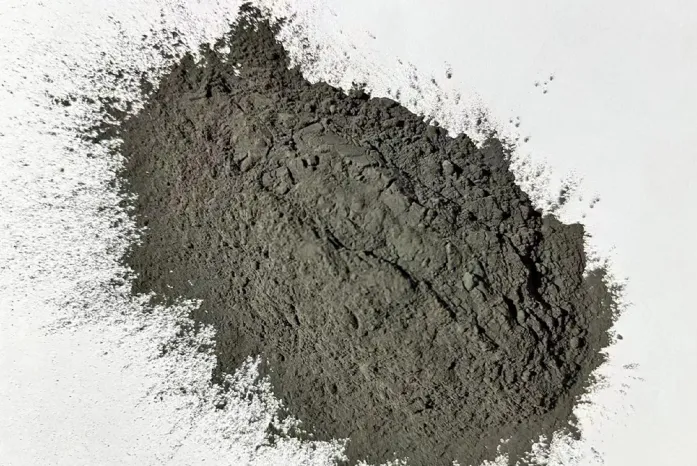

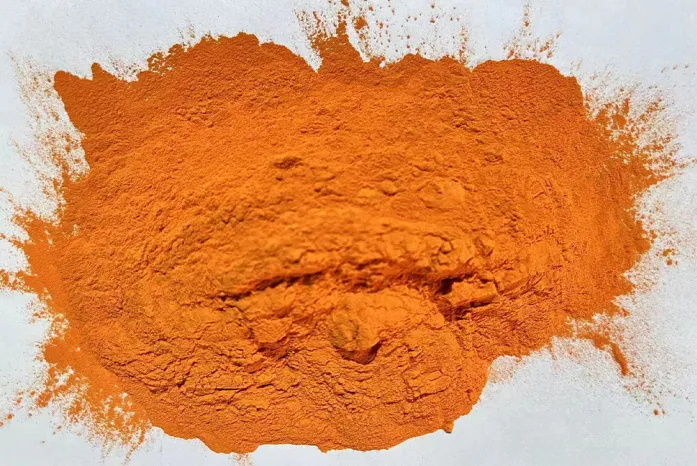

Our powder coatings for standard building material are made of polyester resin and TGIC curing agent as the main raw materials.

Standard Building Material Powder Coating

Why Choose Our Powder Coatings?

One good reason is not enough, we are giving you 7 to think about using our stable and reliable powder coatings.

Production Experience

We have more than 20 years of production experience to ensure the quality of your powder coating is excellent and stable.
Quality Assurance

Quality is our core, we are more than happy to send you some free samples to test our quality before any official orders.
Production Lines

With more than 28 advanced production lines, our monthly production capacity is about 1200 tons to ensure your need is met.
After Sales Guarantee

As a reliable powder coating supplier, we are willing to sign an official quality and after-sales agreement with you to ensure that your interests are protected.

FAQ

What is the minimum order quantity for your powder coatings?

Usually, the minimum order quantity for our powder coating is 1 ton. However, in special circumstances, we can accept a lower minimum order quantity as support for you.
What is the fastest lead time for your powder coatings?

Normally, the lead time for our powder coatings is 7 days after receiving your deposit. However, if your order is urgent, we will do our best to help you shorten the production cycle.
Can I get a bigger discount if I purchase in larger quantities?

That is for sure. Even though our price is reasonable enough, you can always get a bigger discount if you purchase in large quantities.
Can I get some free samples for testing before purchasing?

Quality is our culture, we are more than happy to send you some free samples for testing our quality before any official orders.
Can I get a money-back guarantee if your quality does not match the sample?

The answer is positive. You can always experience peace of mind with our 100% after-sales guarantee for any of your orders.
Where do you sell? Do you have experience in exporting to my country?

We sell our powder coatings to Europe, America, the Middle East, Asia, Africa, and South America. We have more than 10 years of experience exporting with all certificates such as Qualicoat, ISO9001 Quality Management System Certificate, ISO9001 Environmental Management System Certificate, and CPST Test Report. etc. With us, your order is safe, your business is safe.
