Advantage

We always pay close attention the quality of our powder coatings, in order to protect your benefits, we will control your order strictly to ensure that the quality of each batch of your order is very stable, so that you can be 100% assured. Our powder coating testing equipment is cutting-edge in the industry, and R&D investment is increasing.

Inspection Spraying Room for Powder Coating
Laboratory for Powder Coating
Test Room for Powder Coating

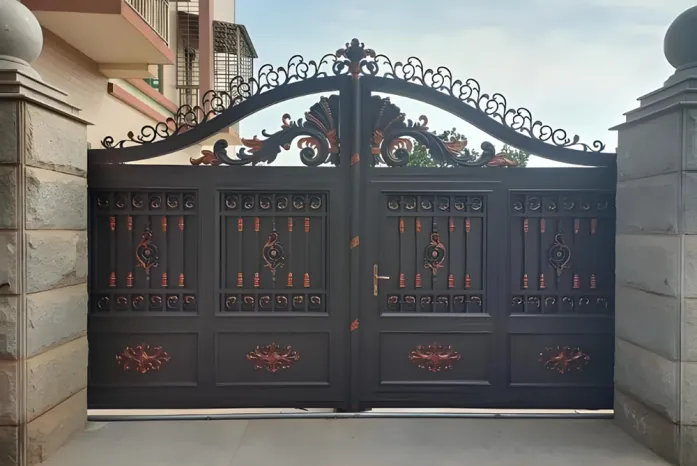

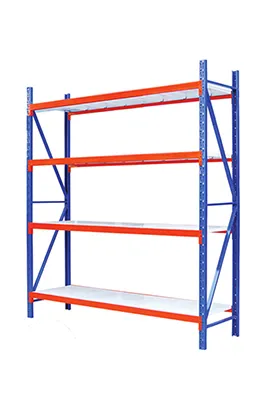

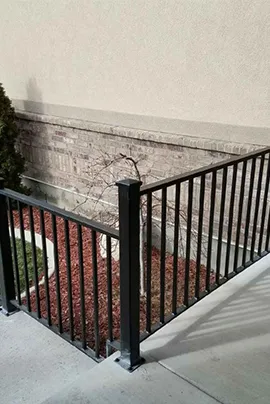

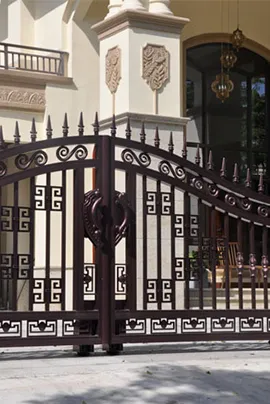

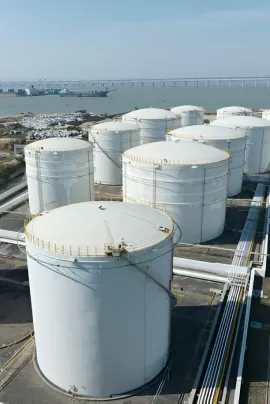

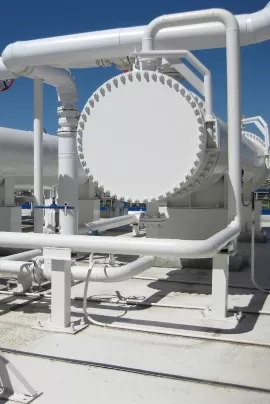

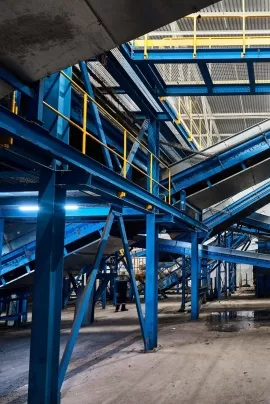

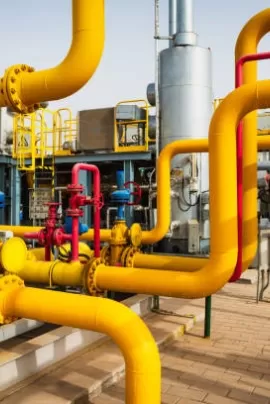

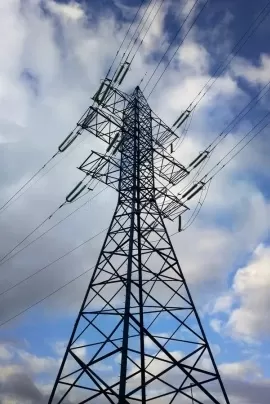

Application Scenarios

Container Stuffing

As a renowned powder coating manufacturer in China, We often ship many containers to Europe, America, the Middle East, Asia, Africa, and South America.

Product Features

Our general industrial powder coating’s characteristics are excellent leveling, high mechanical properties, and good resistance to salt spray.

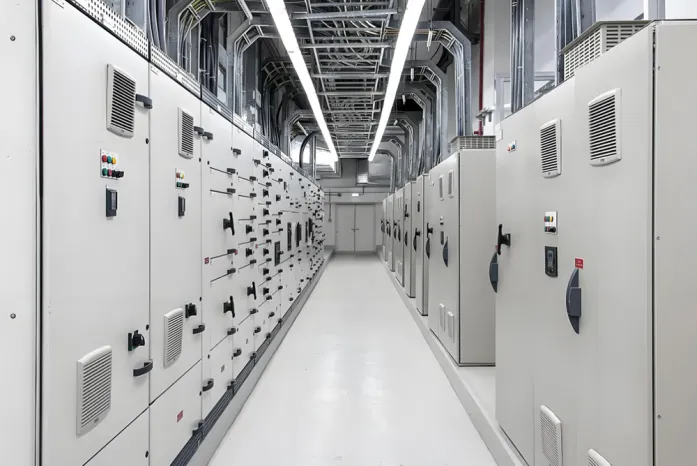

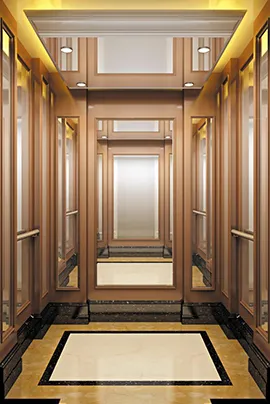

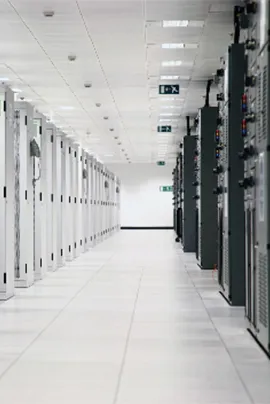

Our general industrial powder coatings are suitable for cabinets, elevators, hardware furniture, spare parts, etc.

Spraying method: high voltage electrostatic spraying 60-80KV

Recommended film thickness: 60-150 um

Application parameters: the curing time is 180°C ~ 200°C x 10-15 minutes

Coating Properties

Item	Test Equipment	Criteria	Testing Standard
Adhesion	Single-edged tool, tape	0 grade	GB/T9286
Impact resistance	Impact meter	50kg.cm Passed	GB/T 1732
Coating hardness	Coating hardness tester	≥ 1 hour	GB/T 6739
Solvent resistance	Anhydrous ethanol, cloth	After 20 times wipe, no scars, decolorization	\
Alkali resistance	0.1n NaOH, beaker	≥ 48h, no blistering, peeling, rusting, speck	GB/T 9274
Water resisting property	Beaker, distilled water	≥ 240h, coating without bubbling, peeling, rusting or speck	GB/T 1733
Acid resistance	Sulfuric acid, beaker	≥ 48h, coating without bubbling, peeling, rusting or speck	GB/T 9274
Resistance to neutral salt spray test	Salt spray test chamber	≥ 240h, rust foaming < 2MM	GB/T 1771
Flexibility	Bending tester	No crack no fall off after surrounding axis by 2mm	GB/T 173
Artificial aging resistance	Aging chamber	≥ 480h, light loss <1, color change < 1, other 0	GB/T 1865 Method 1

In the above tests, 0.8mm cold rolled steel plates with oil and rust removal were used.

The film thickness was 40 ~ 80um, and the performance index of the film would change slightly with different gloss.

This product does not contain arsenic, selenium, lead, hexavalent chromium, mercury, antimony, cadmium and other heavy metals, and meets RoHS requirements.

Note: We will provide a complete powder coating consultation and application customized plan according to the actual needs of each customer. The test indicators mentioned in this report are the data obtained from laboratory

tests for reference only, and do not serve as the performance commitment of product application.

The results vary with environmental factors and other condition.

Overview

Our general industrial powder coatings are mainly designed for decorative and outsourcing parts for industrial products, they have wide range of industrial uses.

General Industrial Powder Coating

Why Choose Our Powder Coatings?

One good reason is not enough, we are giving you 7 to think about using our stable and reliable powder coatings.

Production Experience

We have more than 20 years of production experience to ensure the quality of your powder coating is excellent and stable.
Quality Assurance

Quality is our core, we are more than happy to send you some free samples to test our quality before any official orders.
Production Lines

With more than 28 advanced production lines, our monthly production capacity is about 1200 tons to ensure your need is met.
After Sales Guarantee

As a reliable powder coating supplier, we are willing to sign an official quality and after-sales agreement with you to ensure that your interests are protected.

FAQ

What is the minimum order quantity for your powder coatings?

Usually, the minimum order quantity for our powder coating is 1 ton. However, in special circumstances, we can accept a lower minimum order quantity as support for you.
What is the fastest lead time for your powder coatings?

Normally, the lead time for our powder coatings is 7 days after receiving your deposit. However, if your order is urgent, we will do our best to help you shorten the production cycle.
Can I get a bigger discount if I purchase in larger quantities?

That is for sure. Even though our price is reasonable enough, you can always get a bigger discount if you purchase in large quantities.
Can I get some free samples for testing before purchasing?

Quality is our culture, we are more than happy to send you some free samples for testing our quality before any official orders.
Can I get a money-back guarantee if your quality does not match the sample?

The answer is positive. You can always experience peace of mind with our 100% after-sales guarantee for any of your orders.
Where do you sell? Do you have experience in exporting to my country?

We sell our powder coatings to Europe, America, the Middle East, Asia, Africa, and South America. We have more than 10 years of experience exporting with all certificates such as Qualicoat, ISO9001 Quality Management System Certificate, ISO9001 Environmental Management System Certificate, and CPST Test Report. etc. With us, your order is safe, your business is safe.
